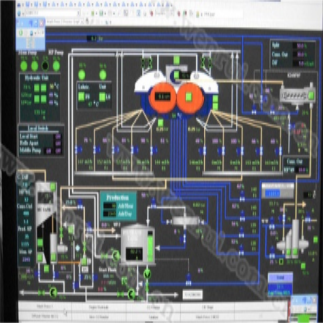

The double-roll pulping extruder is mainly used in the concentration process during pulp washing. Its yield, slurry dryness and washing effect are key indicators, and the speed of the equipment, slurry flow rate, pressure, etc. are important factors affecting these indicators. The control software package developed based on production process requirements and actual conditions can meet user process indicator requirements and ensure the safety of the equipment.
A flow meter and a regulating valve are installed on the slurry pipe. According to needs, the slurry flow can be set on site and controlled by the control system to automatically realize it. When the slurry flow, slurry concentration and system pressure change, the system adjusts the opening of the proportional regulating valve in the oil circuit according to the settings, thereby automatically adjusting the speed of the two slurry rollers to achieve the required concentration and output.
advantage:
1. A liquid level switch, temperature sensor, etc. are provided in the hydraulic oil tank. When the oil level is too low or the oil temperature is too high, an alarm is issued and the corresponding pump and valve are stopped.
2. When the yield and concentration change, it can be automatically adjusted to achieve the required performance indicators.
