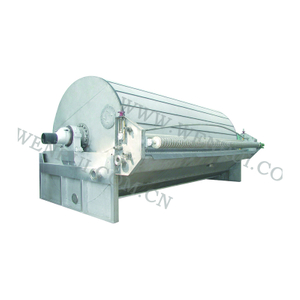

The T-type precoating vacuum drum filter is an efficient and fine solid-liquid separation equipment with precoating technology added to the ordinary drum filter. It has been widely used in pharmaceutical, food, sugar production, chemical and other industries. This product is mainly suitable for situations where filtrate is needed and no residue is filtered.
How it works:
The working principle of the YT type drum filter is basically the same as that of the general vacuum drum filter. The main difference is that the YT filter machine pre-coating filter aids (such as celite, perlite, etc.) before filtration. During filtration, the filter aid in the tank body forms a precoat of the required thickness on the outer surface of the drum under vacuum suction, and then injects the slurry to be filtered. Under vacuum suction, the separated filtrate passes through the precoat and filter cloth and is discharged through the suction tube, liquid collector, and vapor-liquid separator. The solid particles in the slurry are trapped by the precoat layer and are continuously scraped off the surface of the filter aid by the automatic feeding scraper. When the residual thickness of the precoat is about 10mm, precoat needs to be re-prepared and the next working cycle is carried out.
Application areas:
Filtration and desorption of various sugar liquids (glucose, maltosol, dextrin, fructose, sucrose, etc.)
Filtration and deslag removal of fermentation broths such as Taylormycin and Grandimycin in the pharmaceutical industry
Filtration and deslag of fermentation broths such as amino acids and enzyme preparations
Filtration and deslag removal of wine mud and rice mud
Filtration and deslag removal in the food, beverage and juice industries
Filtration and deslag removal of wastewater in chemical industry
Filtration of food additives such as carrageenan
Features:
Personalized design to meet the needs of different customers
Pre-coating technology, high clarity of filtrate
Automatic scraper unloading, high filtration efficiency
The drum surface can be designed and sprayed, and the material is washed well
Series process equipment, easy to install and use
Excellent production environment, simple and convenient operation
